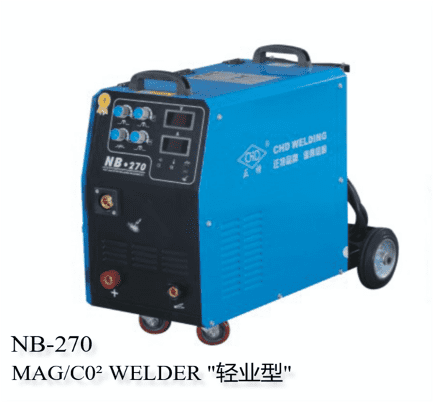

MAG/C0² WELDER
n
| MODEL | NB-270 |
| RATED INPUT VOLTAGE (V/Hz) | 3-380V 卤 10% 50/60Hz |
| RATED INPUT POWER (KVA) | 9,2 |
| RATED INPUT CURRENT (A) | 14 |
| RATED DUTY CYCLE (%) | 60 |
| RANGE OF OUTPUT CURRENT (A) | 50-270 |
| RANGE OF OUTPUT VOLTAGE (V) | 15-29 |
| POWER FACTOR | 0,85 |
| WIRE DIAMETER (MM) | 0.8/1.0 |
| GAS FLOW (L/MIN) | 15-20 |
| TORCH COOLING METHOD | AIR COOL |
| DEGREES OF PROTECTION PROVIDED BY ENCLOSURE | IP21 |
| INSULATION GRADE | F |
| ATTACHMENT DIMENSION W X D X H (MM) | 480 X 620 X 450 |
| POWER SUPPLY DIMENSION W X D X H (MM) | 280 X 550 X 520 |
| POWER SOURCE N.W (KG) | 31 |
PRODUCT ADVANTAGES
n
| Dual IGBT module, device performance, good parameter consistency, |
| high working reliability |
| Small and light, economical and durable, high efficiency of the whole machine, |
| energy saving |
| Digital display meter, welding current, voltage accurate preset |
| Slow delivery Wire arc ignition, arc ignition success rate |
| High |
| With the function of closing the arc, the arc ignition process is smooth and fast. |
| The waveform control technology is adopted, the welding spatter is small, and the |
| beautiful shape |
| APPLICATION INDUSTRY |
| light industry, light steel structure, car maintenance, doors and windows, tools |
| hardware, bicycles, motorcycles and other industries |
