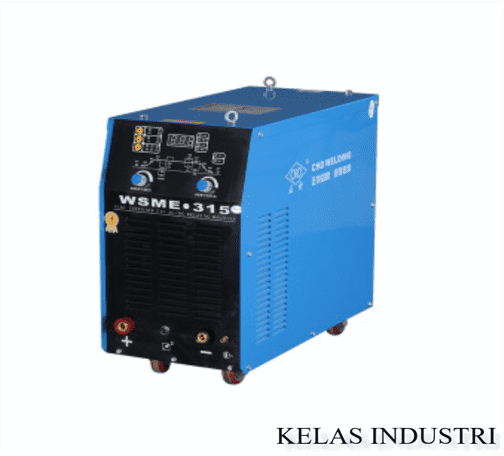

AC/DC ALUMINUM WELDING MACHINE
n
| MODEL | WSME-315 |
| RATED INPUT VOLTAGE/FREQUENCY | 3∽380V±10% 50/60Hz |
| RATED INPUT POWER (KVA) | 9,3 |
| RATED INPUT CURRENT (A) | 14,4 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 66 |
| OUTPUT CURRENT RANGE (A) | 5-315 |
| FLOW START CURRENT (A) | 20-160 |
| PEAK START CURRENT (A) | 5-315 |
| STOP ARC CURRENT (A) | 5-315 |
| UP SLOPE TIME (S) | 0.1-10 |
| DOWN SLOPE TIME (S) | 0.1-15 |
| PRE GAS TIME (S) | 0.1-15 |
| PULSE FREQUENCY (Hz) | 0.2=20 |
| PULSE DUTY CYCLE | 1-100% |
| AC FREQUENCY (Hz) | 20-200 |
| CLEAN RATIO | -40%∽+40 |
| DUTY CYCLE | 1-100% |
| THRUST CURRENT (A) | 10-200 |
| OUTER SHELL PROTECTION DEGREES | IP21 |
| INSULATION GRADE | F |
| TYPE OF COOLING | AIR COOL / WATER COOL |
| POWER SOURCE N.W (Kg) | 55 |
| POWER SUPPLY DIMENSIONS WXDXH (mm) | 360 X 750 X 690 |
| APPLY TUNGSTEN ELECTRODE DIAMETER (mm) | 04-Feb |
PRODUCT ADVANTAGES
n
| Digital operation panel with rich functions and easy operation. |
| Slow current rise, slow fall, forward air supply, delayed air downtime |
| and other parameters can be weighed accurately |
| AC frequency and cleaning width can be independently adjusted for |
| Meet |
| welding process requirements of various aluminum materials |
| Easy arc ignition, stable arc, and easy control of the molten pool. |
| Hydrogen arc welding has the function of protection of welding torch water shortage and |
| protect the welding torch. |
| The foot switch can be used to control the welding current. |
| With two-step and four-step welding control mode |
| APPLICATION INDUSTRY: |
| Aerospace, Air separation, petrochemical, radiator, aluminum furniture, bicycle etc. |
