CUT WELDING MACHINE
n

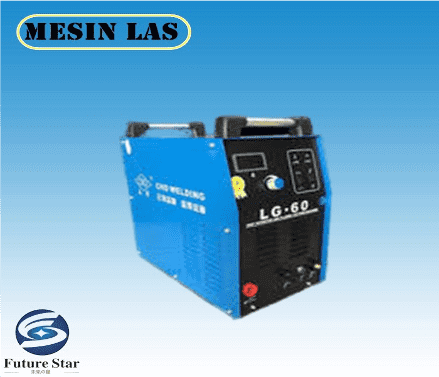

| MODEL | LG-60 |
| INPUT VOLTAGE | 3 Phase 380V, 50/60Hz |
| RATED INPUT CURRENT (KVA) | 6,8 |
| OUTPUT CURRENT (A) | 30-60 |
| DUTY CYCLE | 60% |
| MAX CUTTING THICKNESS (mm) | 20 |
| OPTIMAL CUTTING THICKNESS (mm) | 0.3-10 |
| PRESSURE OF GAS SUPPLY(Mpa) | 0.3-0.5 |
| CUTTING TORCH COOLING MODE | AIR COOLING |
| MACHINE SIZE (HxWxL, mm) | 510x280x610 |
| WEIGHT (Kg) | 35 |
PRODUCT ADVANTAGES
n
| Suitable for use with CNC cutting machine systems |
| Small size, light weight, energy saving and power saving, high load duration |
| With accurate preset cutting current function |
| Unique high-frequency arc starting method, reducing interference to the system |
| Stable pressure arc, fast cutting speed, smooth and small cutting surface deformation |
| The cutting current rises slowly, and the air stop is delayed to effectively protect the |
| main specifications of cutting torque |
