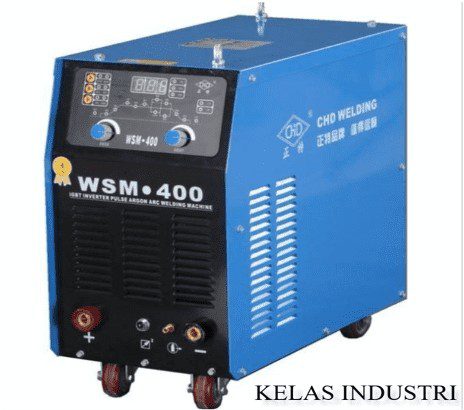

WSM TIG WELDING MACHINE
n
| MODEL | WSM-400D |
| RATED INPUT VOLTAGE/FREQUENCY | 3~380V±10% 50/60Hz |
| RATED INPT POWER (KVA) | 17 |
| RATED INPUT CURRENT (A) | 28 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 72 |
| WELDING CURRENT (A) | 5-400 |
| FLOW START CURRENT (A) | 10-160 |
| STOP ARC CURRENT (A) | 5-400 |
| UP SLOPE TIME (S) | 0.1-10 |
| DOWN SLOPE TIME (S) | 0.1-15 |
| PRE GAS TIME (S) | 0.1-15 |
| POST GAS TIME (S) | 0.1-15 |
| WELDING CURRENT (A) | 5-400 |
| THRUST CURRENT (A) | 10-200 |
| ARC STRIKE CURRENT (A) | 20-160 |
| POWER FACTOR | ≥0.87 |
| INSULATION GRADE | f |
| POWER SOURCE N.W (Kg) | 41 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 350x660x650 |
PRODUCT ADVANTAGES
n
| Industrial-grade electric welding machine, suitable for long-time use and tasks |
| weight |
| Microcomputer control technology, digital display meter |
| Slow current rise, slow fall, forward air supply, stoppage time |
| air delay and other parameters can be measured accurately |
| Pulse frequency, calculated Space ratio, peak value, base value can be |
| customized by condition |
| By short welding, long welding, spot welding, and methods |
| other welding controls |
