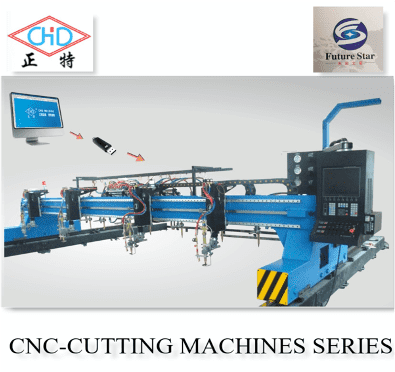

CNC CUTTING MACHINE SERIES
n
| TYPE | CNC-4000 |
| SUPPLY VOLTAGE | 3 PHASE 380V 50/60Hz / according to user's local condition |
| EFFECTIVE CUTTING WIDTH | 4000 mm |
| EFFECTIVE CUTTING LENGTH | 2000 mm less than track length |
| CUTTING SPEED | 0-12000 mm/min |
| CUTTING THICKNESS | 5-150 mm (flame) |
| CUTTING GAS | Oxigen + Acetylene or propane |
nFUNCTION
n
| High-precision, high-efficiency, high-quality gantry-type CNC cutting machine |
| According to user needs, this machine can be equipped with multiple cutting torches, |
| bevel cutting, multi-point cutting |
| You can choose 12000mm cutting length, 7000mm inner width |
| With flame, plasma Cutting function |
| With automatic ignition device |
| With the function of automatically adjusting the lift of the plasma cutting torch |
| ADVANTAGE |
| The beam adopts box-type welding structure, which has good overall rigidity |
| and high strength |
