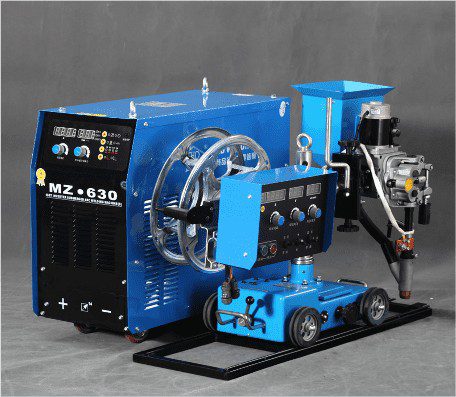

ARC WELDING MACHINE
n
| MODEL | MZ-630D |
| RATED INPUT VOLTAGE/FREQUENCY | 3-380V±10% 50/60Hz |
| RATED INPUT POWER (KVA) | 27 |
| RATED INPUT CURRENT (A) | 52 |
| RATED DUTY CYCLE (%) | 100 |
| OPEN LOAD VOLTAGE (V) | 90 |
| OUTPUT CURRENT RANGE (A) | 60-630 |
| OUTPUT VOLTAGE RANGE (V) | 20-50 |
| POWER FACTOR | 0,87 |
| WIRE DIAMENTER (mm) | 1.6-4 |
| WELDING SPEED RANGE (mm/min) | 100-1500 |
| WIRE FEEEDING SPEED RANGE (mm/min) | 600-6000 |
| WIRE COIL CAPACITY (Kg) | 20 |
| SOLDER FUNNEL CAPACITY (L) | 2 |
| INSULATION GRADE | H |
| POWER SUPPLAY DIMENSIONS WxDxH (mm) | 365 X 800 X 790 |
| POWER PACK DIMENSIONS WxDxh (mm) | 440 X 860 X 790 |
| ATTACHMENT SIZE (mm) | 500 X 1140 X 820 |
| HOST G.W / OVERALL POWER SOURCE G.W (Kg) | 70/132 |
| WELDING THICKNESS (mm) | 10-Mar |
PRODUCT ADVANTAGES
n
| Soft switching inverter technology, energy-saving design, no inner arc |
| 30-minute intervals, circuit power is automatically cut off |
| Light weight, small size, easy to move |
| High load duration, can work continuously throughout the day |
| High energy, slow cable feeding Arc start, success rate 100% |
| No contact control, high reliability |
| All have constant current characteristics, welding wire diameter 3.0-6.0mm |
| Pulse width adjusts wire feeding and trolley driving speed, |
| less affected by power grid fluctuations and temperature changes |
| The wire feeding device is two-wheel drive and wire pressing |
| elastic to ensure stable and reliable wire feeding. |
| Variable speed and constant speed two-wire feeding method |
| Various trolleys are optional to meet the needs of various positions |
| Welding. Function: submerged arc welding, carbon arc gas |
| Innovative and manual arc welding applications: shipbuilding, boilers, |
| bridge, surface, steel structure, wind tower, etc. |
