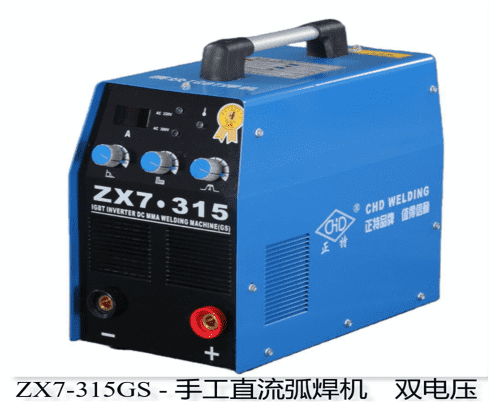

ZX7-315GS ELECTRIC WELDING MACHINE
n
| MODEL | ZX7-315GS |
| RATED INPUT VOLTAGE (V) | 1∽220V/3∽380V±10% 50/60Hz |
| RATED INPUT POWER (KVA | 12,5 |
| RATED INPUT CURRENT (A) | 20 |
| RATED INPUD VOLTAGE (V) | 32,6 |
| RATED DUTY CYCLE (%) | 60% |
| OPEN LOAD VOLTAGE (V) | 72V ± 8V |
| RANGE OF OUTPUT CURRENT (A) | 20-315 |
| DEGREES OF PROTECTION PROVIDED BY ENCLOSURE | IP21 |
| INSULSTION GRADE | F |
| TYPE OF COOLING | COLD |
| ELECTRADE DIAMETER (mm) | 04-Feb |
| POWER SOURCE N.W (Kg) | 14 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 230 X 450 X 420 |
PRODUCT ADVANTAGES
n
| * ZX7-315GS is suitable for AC 220V/380V two-phase voltage in one intelligent switching power, |
| various applications |
| * Small size, light weight, significant energy savings |
| * Simple circuit, strong anti-interference ability |
| * Digital display of welding current, the current can be set accurately before welding (control accuracy 1A) |
| * The arc ignition current can be set separately, which is suitable for welding workpieces with different plate thicknesses. |
| * The push current can be selected according to the length of the welding cable in long-distance welding |
| * There are many types of safety protection functions such as temperature protection |
| APPLICATION INDUSTRY: HOME DECORATION, EQUIPMENT INSTALLATION AND REPAIR ETC. |
