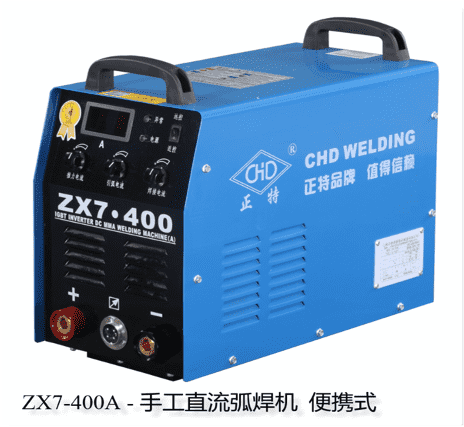

ZX7-400A ELECTRIC WELDING MACHINE
n
| MODEL | ZX7-400A |
| RATED INPUT VOLTAGE (V) | 3~380V卤10% 50/60Hz |
| RATED INPUT POWER (KVA | 18,4 |
| RATED INPUT CURRENT (A) | 28 |
| RATED INPUD VOLTAGE (V) | 36 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 72v 卤 8v |
| RANGE OF OUTPUT CURRENT (A) | 20-400 |
| DEGREES OF PROTECTION PROVIDED BY ENCLOSURE | ip21 |
| INSULSTION GRADE | f |
| TYPE OF COOLING | AIR COOL |
| ELECTRADE DIAMETER (mm) | 06-Feb |
| POWER SOURCE N.W (Kg) | 18 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 250x520x420 |
PRODUCT ADVANTAGES
n
| Small size, light weight, significant energy savings |
| Simple circuit, strong anti-interference ability |
| Digital display of welding current, accurate prediction before welding Set current (control accuracy 1A) |
| The arc ignition current can be adjusted, suitable for arc ignition, workpiece ignition by |
| different thicknesses. |
| The push current can be adjusted according to the length of the welding cable for long-distance welding. |
| With temperature protection and other safety protection functions |
| APPLICATION INDUSTRY: home decoration, appliance installation and repair, etc. |
