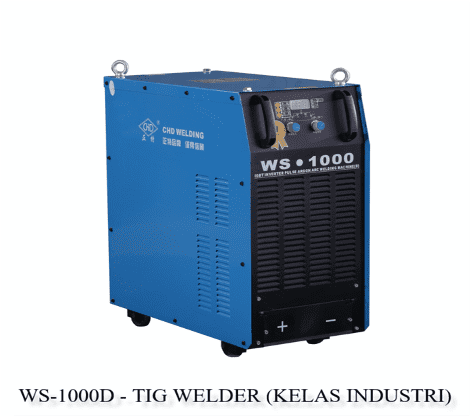

TIG WELDING MACHINE
n
| MODEL | WS-1000D |
| RATED INPUT VOLTAGE/FREQUENCY | 3-380V±10% 50/60Hz |
| RATED INPT POWER (KVA) | 42 |
| RATED INPUT CURRENT (A) | 64,5 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 23 ± 3V |
| WELDING CURRENT (A) | 60-1000 |
| FLOW START CURRENT (A) | 10-160 |
| STOP ARC CURRENT (A) | 5-160 |
| UP SLOPE TIME (S) | 0.1-10 |
| DOWN SLOPE TIME (S) | 0.1-15 |
| PRE GAS TIME (S) | 0.1-15 |
| POST GAS TIME (S) | 0.1-15 |
| WELDING CURRENT (A) | 60-1000 |
| THRUST CURRENT (A) | 1-250 |
| ARC STRIKE CURRENT (A) | 20-160 |
| INSULATION GRADE | F |
| POWER SOURCE N.W (Kg) | 75 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 400 X 800 X 880 |
| ARC STRIKING MODE | ARC STRIKING BY FREQUENCY |
| TYPE OF COOLING | AIR COOL / WATER COOL |
| OUTER SHELL PROTECTION DEGREE | IP21 |
| APLLY TUNGSTEN ELECTRODE DIAMETER | 08-Feb |
PRODUCT ADVANTAGES
n
| Industrial-grade electric welding machine, suitable for long-time use |
| long and heavy duty |
| Microcomputer control technology, digital display meter |
| Slow up and down flow, initial air supply, stoppage time |
| delayed air, and |
| other parameters can be pre-set accurately |
| TIG can choose high frequency, stroke and arc ignition methods |
| by welding |
| short, long welding, spot welding and control methods |
| other welding |
| Model ws-1000D is designed and developed for steel pipe industry |
| stainless also has |
| carbon arc gas making function |
| With special machine interface |
| APPLICATION INDUSTRY: |
| petrochemical, Pressure vessel, electrical construction, ship, bicycle, nuclear power, pipeline installation, etc. |
