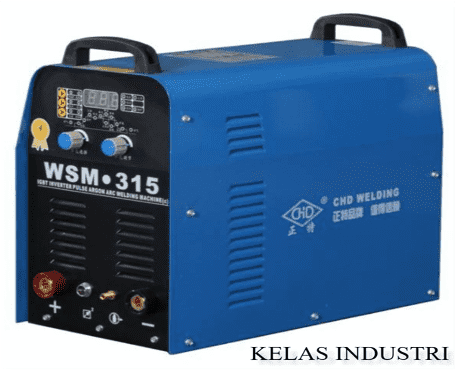

WSM TIG WELDING MACHINE
n
| MODEL | WSM-315D |
| RATED INPUT VOLTAGE/FREQUENCY | 3~380V±10% 50/60Hz |
| RATED INPT POWER (KVA) | 12,1 |
| RATED INPUT CURRENT (A) | 21 |
| RATED DUTY CYCLE (%) | 60 |
| OPEN LOAD VOLTAGE (V) | 72 |
| WELDING CURRENT (A) | 5-315 |
| FLOW START CURRENT (A) | 10-160 |
| STOP ARC CURRENT (A) | 5-315 |
| UP SLOPE TIME (S) | 0.1-10 |
| DOWN SLOPE TIME (S) | 0.1-15 |
| PRE GAS TIME (S) | 0.1-15 |
| POST GAS TIME (S) | 0.1-15 |
| WELDING CURRENT (A) | 5-315 |
| THRUST CURRENT (A) | 10-200 |
| ARC STRIKE CURRENT (A) | 20-160 |
| POWER FACTOR | ≥0.87 |
| INSULATION GRADE | f |
| POWER SOURCE N.W (Kg) | 25 |
| POWER SUPPLAY DIMENSIONS WXDXH (mm) | 300x570x510 |
PRODUCT ADVANTAGES
n
| Industrial-grade electric welding machine, suitable for long-time use and tasks |
| weight |
| Microcomputer control technology, digital display meter |
| Slow current rise, slow decline, forward air supply, air stop time |
| delayed and other parameters can be accurately measured |
| Pulse frequency, calculated Space ratio, peak value, base value can be adjusted conditionally |
| By short welding, long welding, spot welding, and control methods |
| other welding |
